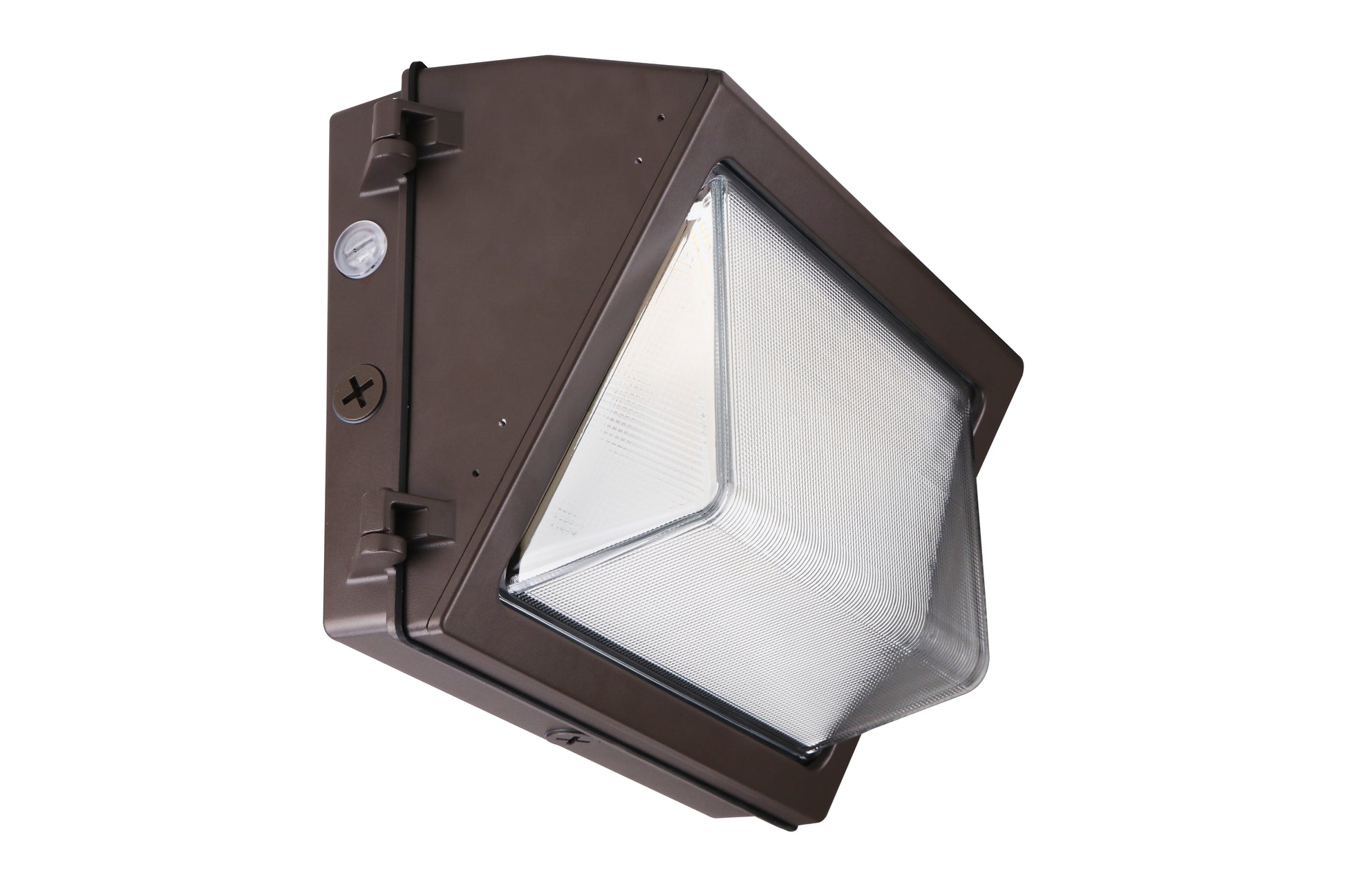

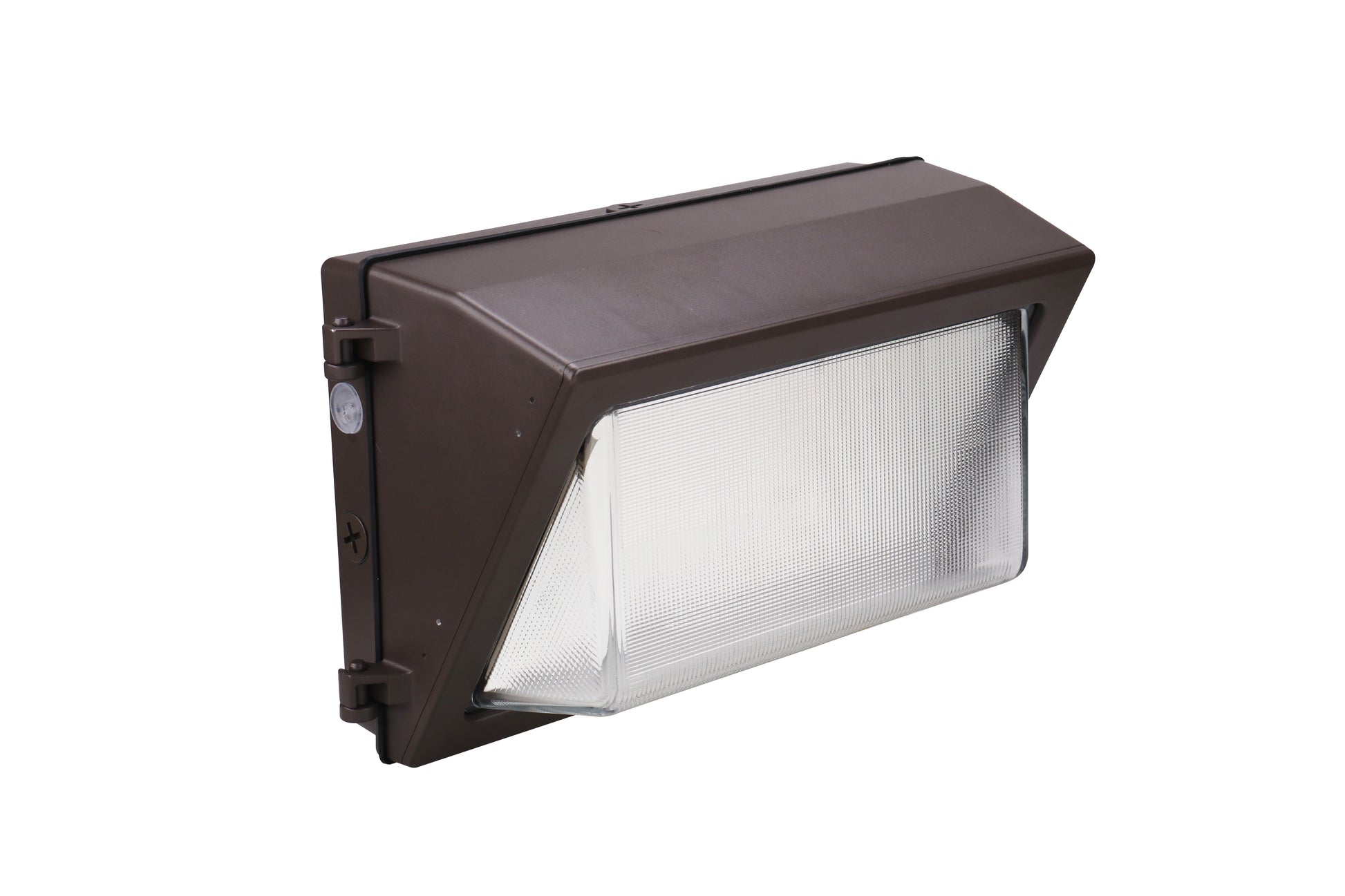

LED Wall Pack

Product Name: LED Wall Pack
Model: WP-120

The WP-120 LED Wall Pack is built for performance, efficiency, and reliability in demanding outdoor environments. Equipped with an advanced photocell sensor, this fixture offers automatic dusk-to-dawn activation, ensuring your space is lit only when needed—maximizing energy savings and convenience.

Constructed from premium die-cast aluminum with a durable glass lens, the WP-120 delivers bright, uniform illumination and long-lasting durability. Its sleek, weather-resistant design stands up to the elements, making it ideal for building exteriors, parking areas, and security lighting.

With adjustable wattage settings (80W/100W/120W) and adjustable CCT (3000K, 4000K, 5000K), this wall pack provides customizable brightness and color temperature to suit a variety of applications. The dimmable 0–10V driver ensures compatibility with advanced lighting controls, and an 80+ CRI guarantees accurate color rendering.

Delivering up to 15,600 lumens and operating on a broad 120–277V AC input, the WP-120 is both UL certified and DLC listed, meeting rigorous standards for safety and efficiency. With simple installation and dependable performance, this wall pack is a high-quality solution for professional outdoor lighting needs.

Features:

• Advanced Photocell Sensor for Automatic Dusk till Dawn Activation

• Dimmable 0-10V Driver
• 80+ CRI for Accurate Color Reproduction
• Adjustable CCT (3000K/4000K/5000K)

• Adjustable Wattage (80W/100W/120W)
• Made with Premium Die Cast Aluminum and Glass Lens for Bright, Uniform Lighting
• Weather Resistant
• Simple Installation

• DLC Listed
• UL Certified

Dimensions:

• Product Structure: 14.21 x 9.27 x 7.31" (361.93 x 235.46 x 185.69mm)

• Length: 14.21" (361.93mm)
• Width: 9.27" (235.46mm)

• Height: 7.31" (185.69mm)

Electrical Specifications:

• Brightness: 10400/13000/15600 Lumens

• Power: 80/100/120 Watts
• Voltage: 120-277V AC/Dimmable
