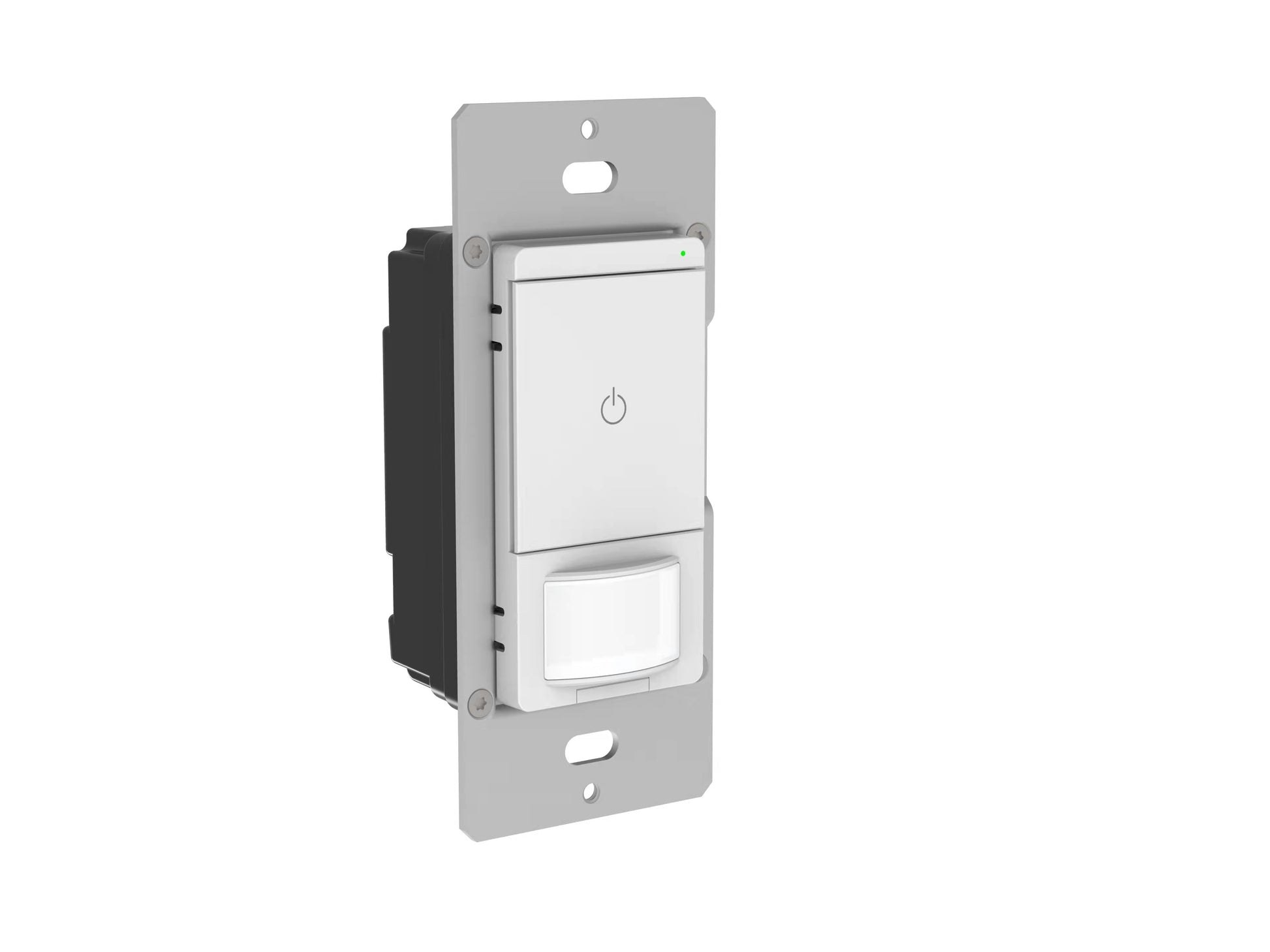

LED PIR Sensor Switch

Product Name: LED PIR Sensor Switch
Model: DM006

The DM006 LED PIR Sensor Switch brings intelligent motion-based lighting control to your fingertips, offering advanced PIR motion sensing technology combined with a sleek, user-friendly design. With adjustable motion sensitivity (Low/Medium/High) and multiple lighting duration options (1 min, 5 min, 15 min), it allows users to fine-tune operation based on room size, traffic level, or personal preference.

This versatile switch supports three control modes—Ordinary Switch, PIR Sensor, and Optical-Controlled Switch—giving you full flexibility over how and when your lights operate. The built-in automatic power-off memory function ensures settings are retained even after a power outage, while the LED setting indicator provides clear visual feedback during setup and use.

Equipped with a premium power button and On/Off status indicators, the DM006 is compatible with dimmable LEDs/CFLs, halogens, incandescents, and small motor loads (up to 1/6HP), supporting single pole installations.

Perfect for energy-conscious users and automation enthusiasts, this motion-activated switch can save up to $50 per year when paired with dimmable LEDs—combining efficiency, reliability, and smart adaptability in one sleek unit.

Features:

• Advanced PIR Motion Sensor
• Adjustable PIR Sensitivity (Low/Med/High)
• LED Setting Indicator
• Adjustable Lighting Duration (1min, 5min, and 15min)
• 3 Control Methods (Ordinary Switch/PIR Sensor Switch/Optical Controlled Switch)
• Automatic Power Off Memory Function
• Premium Power Button for turning power On/Off
• Red/Green Indicator Lights for On/Off Status

• Single Pole
• Compatible with Dimmable LEDs/CFLs, Halogens, and Incandescents
• May save $50 per year when connected to Dimmable LEDs

Dimensions:

• Length: 105mm
• Width: 44mm
• Height: 31mm

Electrical Specifications:

• Rated Voltage: 120V
• Rated Frequency: 60Hz

• Load Range: Incandescent/LED/CFL/Resistive (5A) | Motor (1/6HP)
