LED Garage Canopy

Product Name: LED Garage Canopy
Model: CANOPY-70

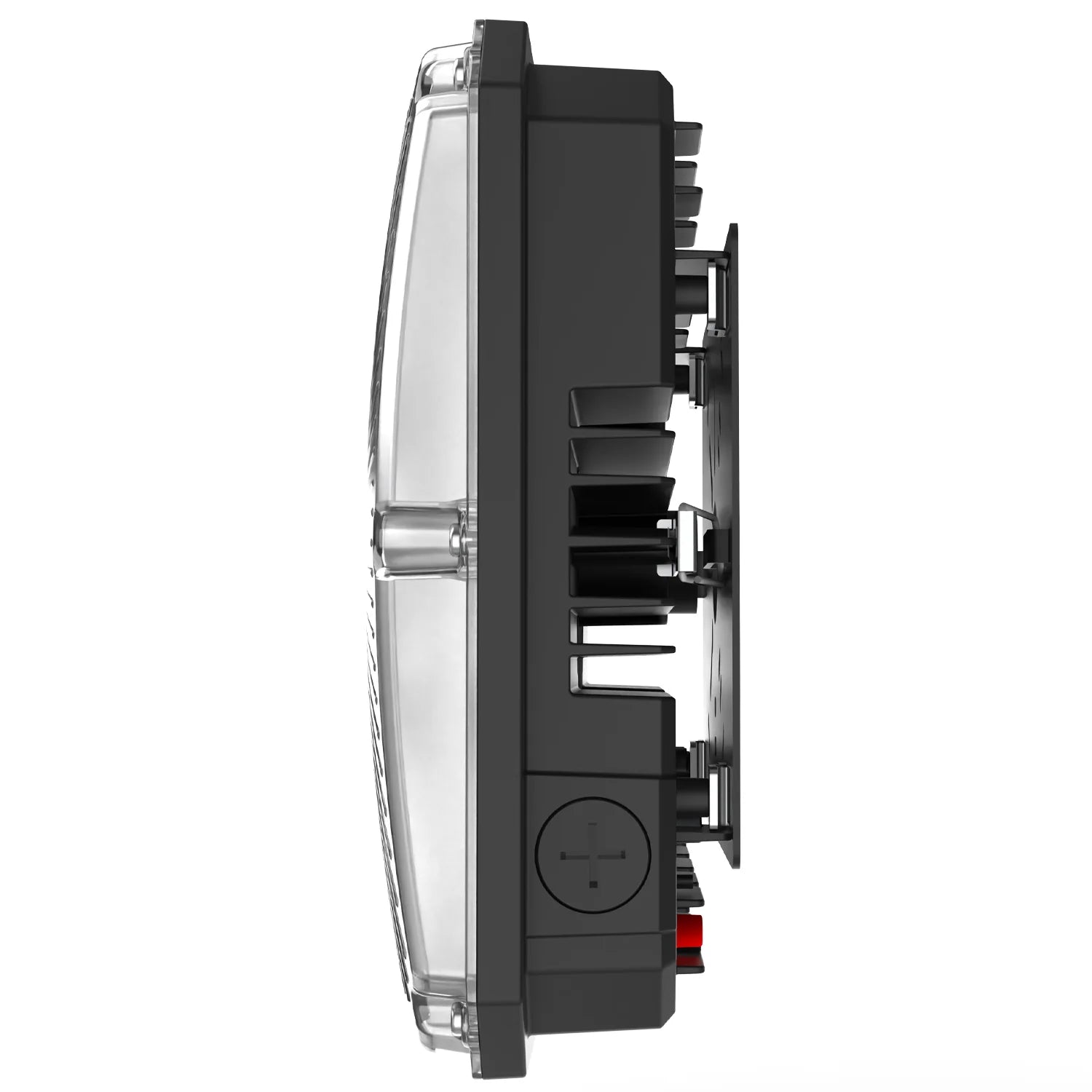

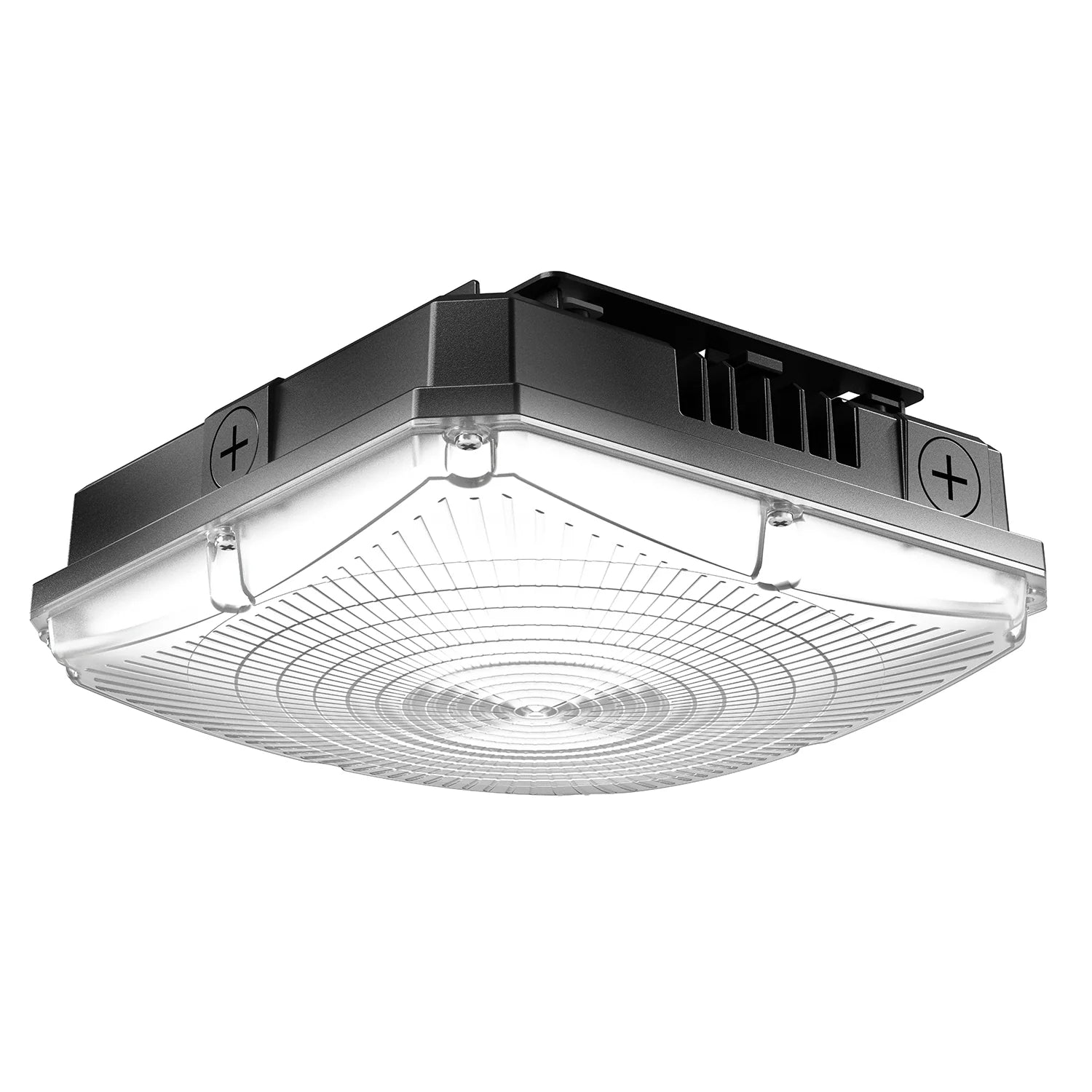

The LED Garage Canopy (Model CANOPY-70) is a high-performance lighting solution designed for durability, energy efficiency, and wide-area coverage. With a powerful 150° beam angle and an outstanding 132 lumens per watt, this canopy light delivers bright, uniform illumination while significantly reducing energy costs.

Built with premium, weather-resistant materials, the CANOPY-70 is made to endure tough environments such as parking garages, loading docks, and covered outdoor spaces. Its 90%+ light transmission rate ensures minimal light loss, while an 80+ CRI guarantees accurate color rendering in every application.

Offering adjustable wattage settings (40W/60W/70W) and tunable color temperatures (3000K/4000K/5000K), this fixture allows you to customize brightness and tone to meet site-specific needs. It supports a broad 120–277V AC dimmable range, operates at 50/60Hz, and includes a UL certification and DLC listing—ensuring both compliance and efficiency.

With a compact form factor of 11.89" x 11.61" x 5.51" (302 x 295 x 140mm) and simple installation, the CANOPY-70 combines intelligent design, top-tier quality, and superior efficiency for reliable, long-lasting lighting.

Features:

• 150° Beam Angle
• 90%+ Light Transmission Rate
• 80+ CRI for Accurate Color Reproduction
• Adjustable CCT (3000K/4000K/5000K)

• Adjustable Wattage (40W/60W/70W)
• Made with Premium Materials for Durability
• Weather Resistant
• Simple Installation
• DLC Listed
• UL Certified

Dimensions:

• Product Structure: 11.89 x 11.61 x 5.51" (302 x 295 x 140mm)

• Length: 11.89" (302mm)
• Width: 11.61" (295mm)

• Height: 5.51" (140mm)

Electrical Specifications:

• Brightness: 132 Lumens per Watt

• Power: 40/60/70 Watts
• Voltage: 120-277V AC/Dimmable
• Rated Current: .64A
• Frequency: 50/60Hz
